Dartford Crossing

Dartford, United Kingdom

Year

1963, 1980 & 1991

Duration

4, 9 & 3 years

Cost

£133m (£257m today)

Location

United Kingdom
Project achievements

Connected communities

Enables thousands of people to cross the Thames in the east.

Economy boosted

Local economy has benefited. Bridge itself generates cash through toll fees.

Used engineering skill

Over time build tunnels and a bridge to cross the river Thames.

Construct crossings so that people can cross the river Thames in the east

The Dartford crossing – known as the Dartford tunnel until 1991 – is a major road crossing of the river Thames. It carries the A282 between Dartford to the south and Thurrock in the north.

The crossing is made up of 2 tunnels and the Queen Elizabeth 2 bridge. It's the only fixed crossing of the Thames to the east of Greater London and the busiest estuarial crossing in the UK. Up to 160,000 vehicles use it every day.

The crossing opened in stages: the west tunnel in 1963, the east tunnel in 1980 and the bridge in 1991.

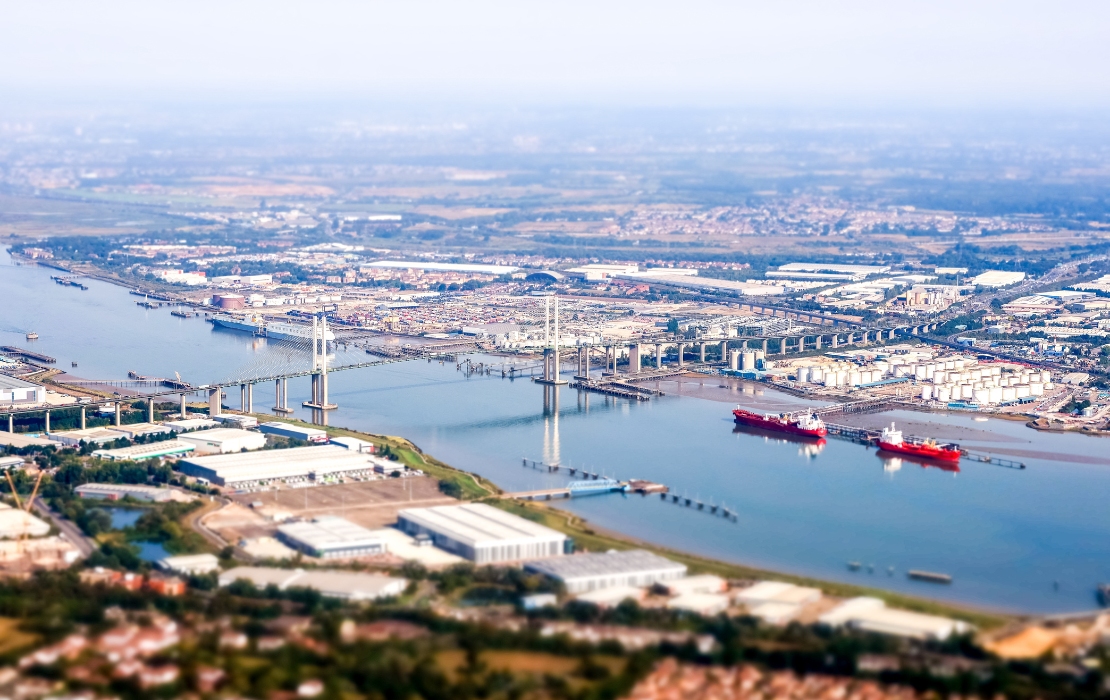

The 2 tunnels are 1,430m long. The Queen Elizabeth 2 bridge is 137m high with a main span of 450m. It's a cable-stayed bridge – one with towers with cables that support the bridge deck.

The crossing carries far more vehicles daily than the 135,000 it was designed for. This means it's often heavily congested, particularly when tunnel or bridge lanes are closed because of bad weather or accidents.

There's always been a toll to use the crossing. The toll booths were removed in 2014 and replaced with a number plate recognition system. Cars and other small vehicles currently cost £2.50 to cross. Motorbikes are free.

Dartford Crossing

Two tunnels and a bridge have been constructed at Dartford to allow people cross the River Thames. When work on the crossings took place in the 1950s a lot of workers suffered daily from decompression sickness, also known as 'The Bends'.

Did you know …

  1. The Dartford crossing generated almost £205m in the financial year 2016-17. Nearly half of that came from £92m issued in fines for unpaid charges.

  2. Crossing authorities wrote off £42m of unpaid fines they couldn't enforce over the same period.

  3. Motorist groups argue that there shouldn't be a charge for the Dartford crossing at all as the infrastructure was paid for years ago.

Difference the crossing has made

The Dartford crossing has made it much easier for vehicles in the area to get across the Thames. The nearest alternatives to Dartford are the Blackwall tunnel (about 8 miles west) or the Woolwich ferry (about 10 miles west).

High vehicles have even less choice than cars and small lorries. When the bridge is closed vehicles over 5m high are diverted round the M25 in the opposite direction.

The Dartford crossing has made the movement of goods and people easier in the area and contributed to the local economy.

How the work was done

Engineers started work on the west tunnel in 1936 but construction stopped with the outbreak of World War 2.

Digging restarted in 1959 with the project team using a tunneling shield to excavate the tunnel. A tunneling shield is a large circular steel frame with pockets. Each pocket had a man with a spade who dug out the earth in front of him.

Work was delayed on the east tunnel through lack of money until 1974 when the European Economic Community (now the EU) provided cash for the project.

The 2.87km long Queen Elizabeth 2 bridge has 2 steel and concrete masts 84m tall. The bridge's deck (roadway) hangs from 56 pairs of cables strung from the masts.

The project team used 2 reinforced concrete caissons to support the river piers. The caissons - prefabricated concrete structures – were built in the Netherlands and towed across the North Sea to the construction site.

Engineers sank the 85,000 tonne caissons into place and filled them with concrete as part of the bridge's permanent structure.

People who made it happen

  • Client: the British government
  • Bridge designer: Helmut Homberg
  • Bridge project manager: Mott MacDonald
